Surplus

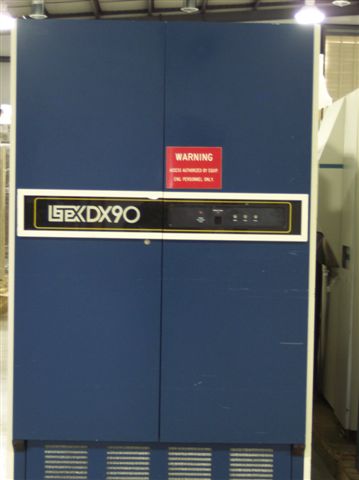

 LTX DX90 Component Tester

JMC currently has an LTX DX90 for sale.
 Ref # COM59
Configured As Follows:
BACKPLANE 701

SLOT DESCRIPTION
1 DC DISTRIBUTION
2 EXTENSION CONTROL
3 CLOCK DISTRIBUTION
7 PG802 CONTROL A
9 PG802 CONTROL B
11 PG802 CONTROL C
16 PG802 MEMORY 1
20 PG802 MEMORY 2
24 PG802 MEMORY 3
38 BUS TERMINATOR
39 DC DISTRIBUTION

BACKPLANE 702

SLOT DESCRIPTION
1 DC DISTRIBUTION
2 CODEC SUPPORT
6 to 29 FORMATTER
38 MASTER CLOCK
39 DC DISTRIBUTION

BACKPLANE 703

SLOT DESCRIPTION
1 DX90 SYNTHESIZER
18 DC DISTRIBUTION

POWER SUPPLIES

P/N QTY
876-0171 2
NJE-022C-C           3
NJE-876-0170        3

Test Head Configuration:
DX90 HEAD
PART NUMBER DESCRIPTION QTY.

860-0547 DX90 PIN CARDS 24
860-0560 DX90 REFERENCE 1
860-1116 BLANK XTAL 1
