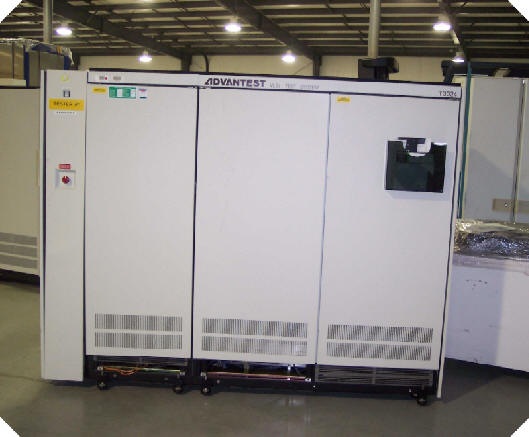

Advantest 3324 128 pin

JMC currently has an Advantest 3324
128 Pin Test head, for sale.
Ref # COM21

Configured As Follows:

TOP BOTTOM

Right To Left

Right To Left

SLOT BOARD SLOT BOARD

1 IF 1 AP

4 DD 2 FCDC IF

5 VGC1 3 FCDC

6 VGC2 4 TTB

14 MATCH 5 FCDC

15 MATCH 6 FCDC

16 PC 7 TTB

17 CTB 8 FCDC

18 TRIG 9 C DIST

19 FMC 10 C DIST

21 PG CONT 11 C DIST

12 C DIST

1 RATE 13 FCDC

3 OP IF 14 TTB

4 TG CONT 15 FCDC

5 DLY-S 16 FCDC

6 P DIST 17 TTB

8 MDA 18 FCDC

9 SB CONT 19 DFM

10 DLY-M 20 DFM

11 CLK S

12 CLK M1 1 SBM CONT

13 CLK M2 2 2M M

14 CLK M3 3 2M M

15 CLK M4 10 SBM IF

16 TG IF

1 VIO IF

1 CPU 2 VIO

2 BUS CONT 3 VIO

3 TP CONT 4 VIO

4 CPU 6 5 VIO

5 CPU 5 10 VIO IF

6 ADI 11 VIO

12 VIO

1 PPS1 13 VIO

2 PPS2 14 VIO

3 PPS3

4 PPS4 TEST HEAD 128 PIN

5 DCT1

6 DCT2 CONT A

7 DCT3 CONT 1

8 DCT4 CONT 2

9 IFA CAL 1

10 IFL CONT B

11 MDC1 DC1

12 MDC2 DC2

15 MDC5 DC3

16 MDC6 DC4

CAL 2
